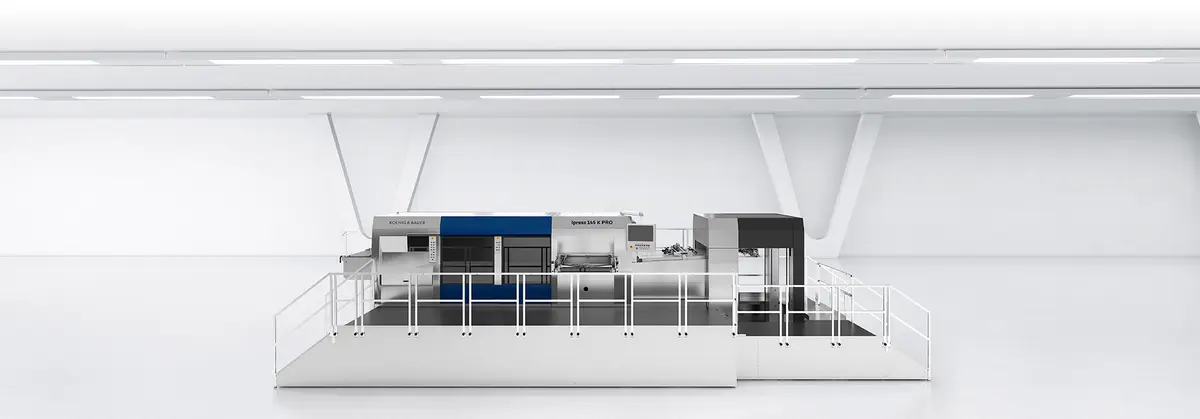

Ipress 145 PRO | Ipress 145 K PRO
Large Format Flatbed Die-Cutter
The large format flatbed die-cutters of the Ipress 145 PRO series offer the perfect solution for an efficient packaging production.
Ipress 145 PRO | Ipress 145 K PRO
Large Format Flatbed Die-Cutter
- Extraordinary efficiency with die-cutting speeds of up to 7,000 sheets/h
- Great substrate flexibility up to 4 mm corrugated board
- Short make-ready times thanks to versatile automation features
- Outstanding die-cutting quality and ultimate register accuracy
- Easy handling and maximum operating comfort
Outstanding and Powerful – the Flatbed Die-Cutters Ipress
Whether in folding box and label production or in industrial commercial printing - the large format flatbed die-cutters process sheet formats of up to 1,050 x 1,450 mm efficiently and precisely to high-quality print products.
The Ipress 145 PRO, equipped with a standard delivery, allows die-cutting, creasing and embossing in an efficient way. The Ipress 145 K PRO with a blanking station offers even more performance.
Both machines are characterised by a high degree of flexibility in terms of the materials to be die-cut, modern automation features for short setup times during make-ready and job changes as well as a high level of operating comfort.
- Optimal sheet infeed and maximum production output thanks to dedicated drive technology
- Process reliability and maximum flexibility, even with demanding substrates
- Fully automatic non-stop system solutions for uninterrupted die-cutting production

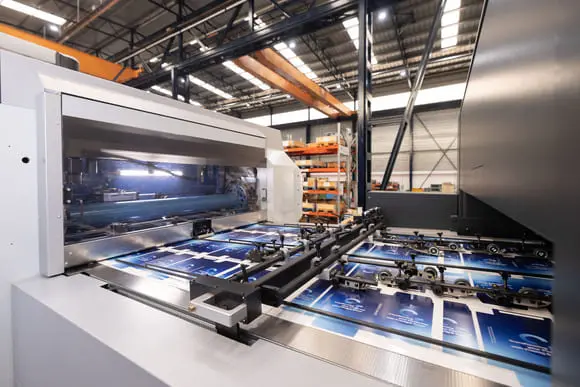

- Maximum die-cutting quality thanks to the perfect register
- Exact alignment of the sheet when transferring it to the machine's gripper system
- Reads the special marks individually printed or those integrated in the colour bar of the sheet
- Cut2Print PLUS especially recommended for packaging made of corrugated and laminated materials
- Compatible to other register marks available on the market
- Pneumatic quick-lock system Fast-Flow for fast and exact fixing of the upper die-cutting tool
- Tool-free positioning of the die-cutting tools with automatic locking and unlocking of the die-chase and counterplate
- Varioplan technology for optimum die-cutting results
- Closed loop pressure control and automatic temperature regulation
- Easy-to-use and convenient machine operation
- Integration into the Koenig & Bauer shop floor data collection
- Integrated upper frame with Fast-Flow quick-lock pneumatic system for dedicated tools

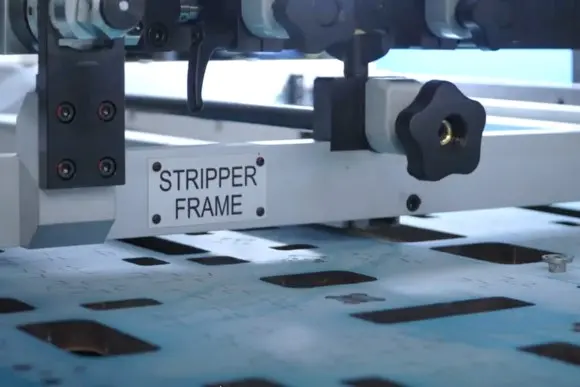

- Easy and fast adjustment regulators for the upper and lower stripping frames
- Pre-makeready table to prepare the next job while the machine is in operation
- Gripper opener for quality control

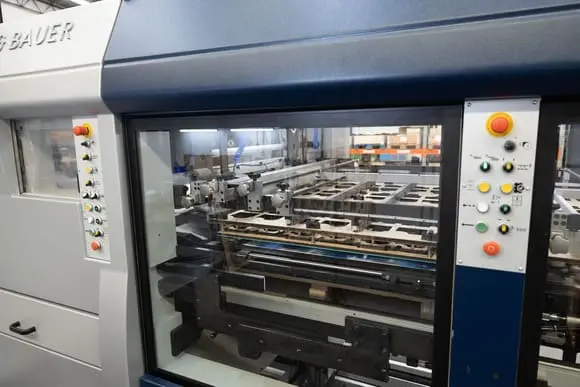

- Integrated upper frame with pneumatic quick-lock system Fast-Flow for fast and exact fixing of layout-specific blanking tools
- Automatic interleaving and non-stop device by means of swords, easily programmable for each job through the touch screen
- Uninterrupted production process and enhanced efficiency thanks to non-stop feature with fully automatic pallet changing

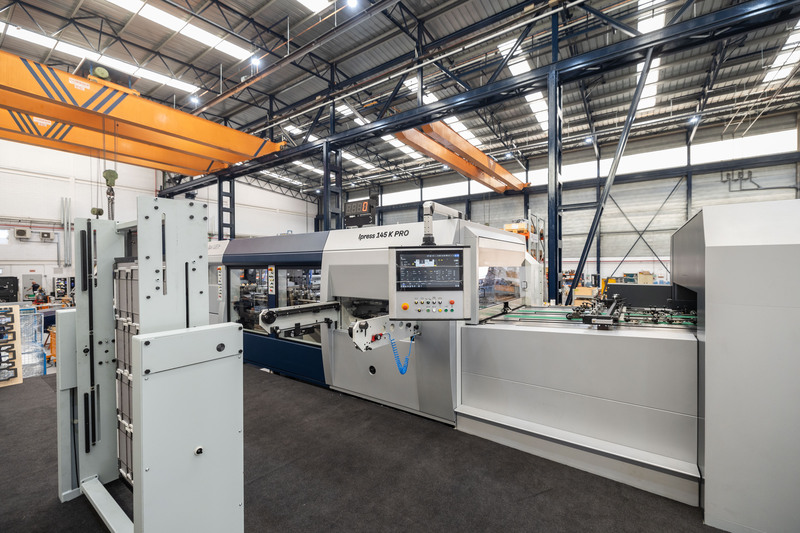

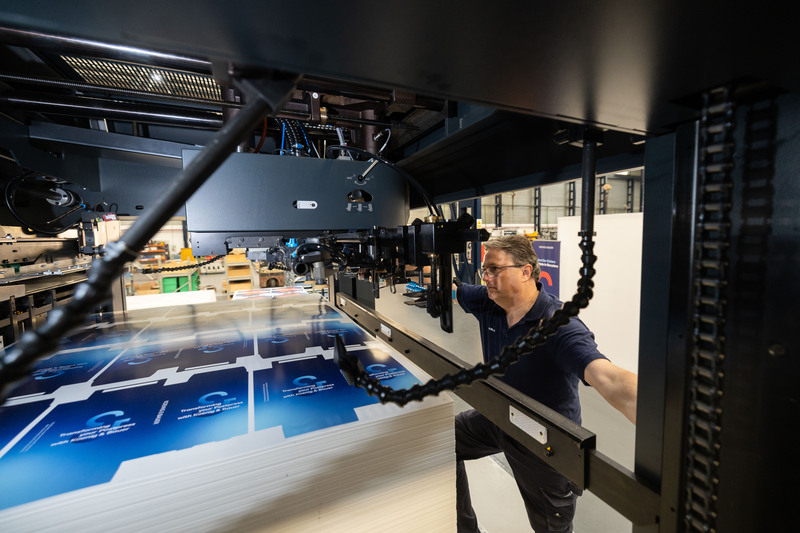

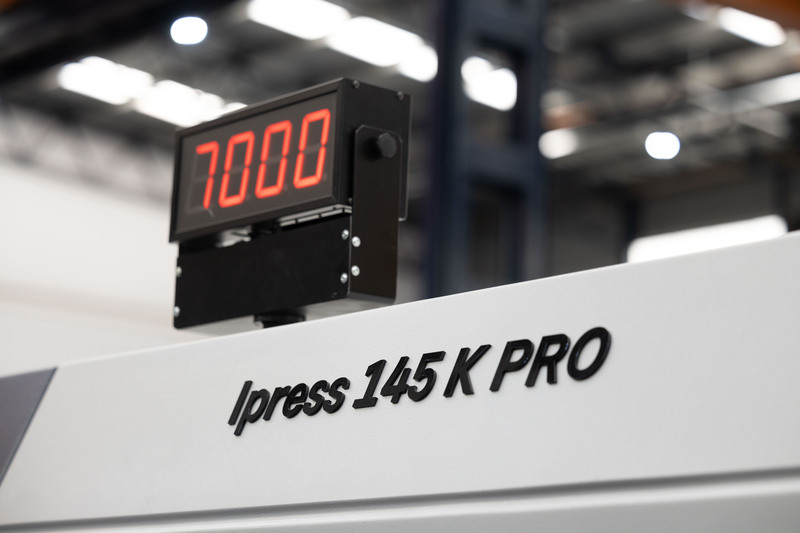

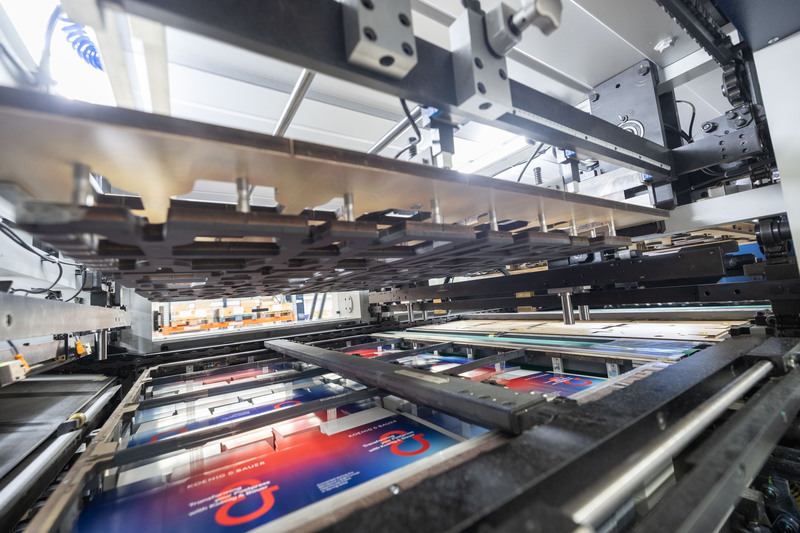

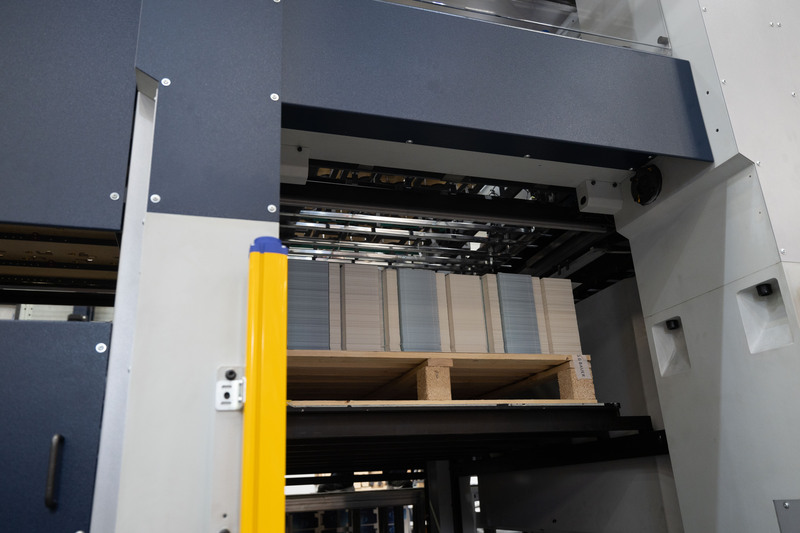

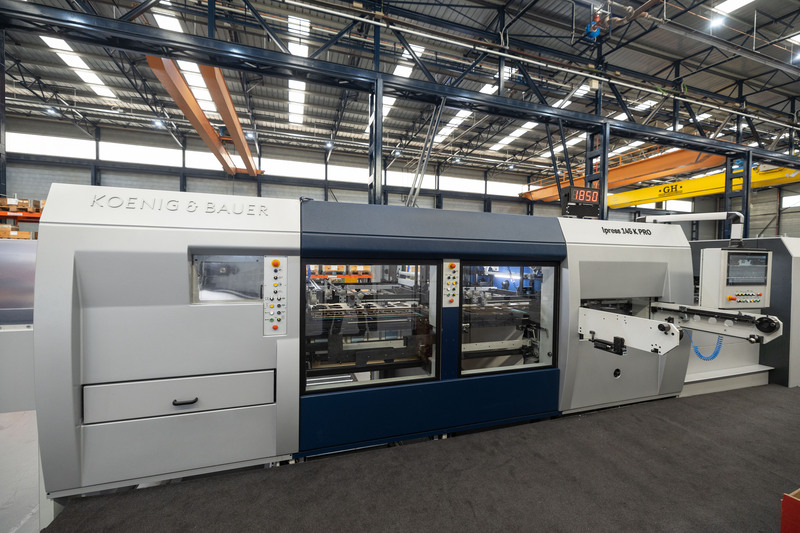

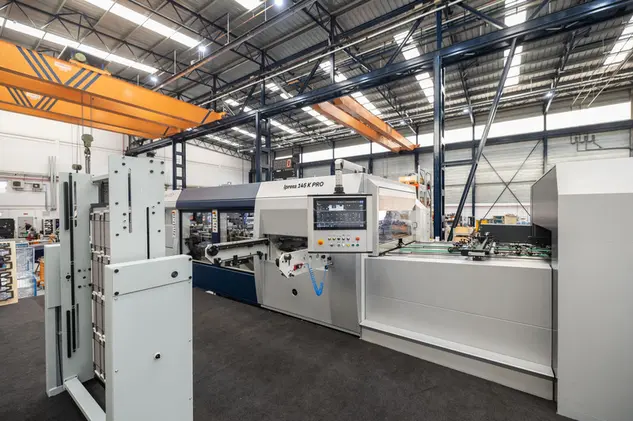

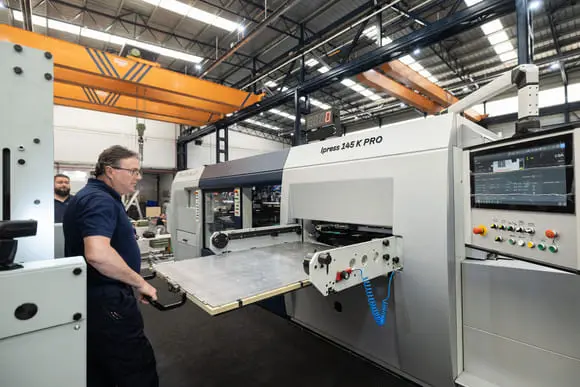

Impressions of the Ipress 145 PRO | Ipress 145 K PRO
The Perfect Match for Nearly Every Application in Folding Box Production
Packaging for industry
- Product shipping
- Office supplies
- Secondary packaging
Packaging for personal care products
- Cosmetics
- Perfume
- Pharmaceuticals
- Health and care products (OTC)
Packaging for food products
- Fresh produce
- Frozen foods
- Dairy products
- Confectionary
- Cereals
- Snacks
- Beverage cartons
- Dietary supplements
Packaging for non-food products
- Clothing
- Household appliances
- Electronics
- Toys
- Cleaning products
- DIY products
Technical Data of the Ipress 145 PRO | Ipress 145 K PRO
| Ipress 145 PRO | Ipress 145 K PRO | |
|---|---|---|
Max. Sheet Format | 1,050 x 1,450 mm | 1,050 x 1,450 mm |
Min. Sheet Format | 550 x 700 mm | 550 x 700 mm |
Max. Die-Cutting Format | 1,030 x 1,450 mm | 1,030 x 1,450 mm |
Substrate Range Paper | From 100 g/m² | From 100 g/m² |
Substrate Range Solid Board | Up to 1.5 mm | Up to 1.5 mm |
Substrate Range Corrugated Board | Up to 4 mm | Up to 4 mm |
Max. Production Speed | 7,000 sheets/h | 7,000 sheets/h |
Min. Gripper Margin | 9 mm | 9 mm |
Max. Gripper Margin | 17 mm | 17 mm |
Max. Die-Cutting Pressure | 600 t | 600 t |
