Chroma X Pro

Flexo Post-Printing Press for Corrugated Board

The Chroma X Pro has been designed for high-performance flexo post print in ultimate quality.

Chroma X Pro

Flexo Post-Printing Press for Corrugated Board

  • Setup while production is running
  • DriveTronic direct technology
  • Fast job change, low maintenance
  • Press control via a flexible profibus system and touchscreen
  • Integrated error diagnostic and online remote maintenance


Ready to Meet the Demands of Tomorrow

The name Chroma X Pro stands for a unique machine concept based on cutting-edge technologies and maximum automation in combination with simple and intuitive handling.

The Chroma X Pro has been designed for high-performance flexo post print in ultimate quality.

The Chroma X Pro is able to handle corrugated sheets of up to a thickness of 9 mm (0.354 in). It runs at speeds of up to 14,000 sheets/h.

  • Latest IR dryer technology
  • Variable emitter control for highest energy efficiency
  • Tool-free emitter change
  • 20% higher output possible with active air management system
  • Optional also other technologies – e.g.hot air, UV


  • Shortest changeover time under 2 minutes
  • Fully automated – no operator intervention
  • 4 storage positions for maximum flexibility
  • Optimal protection thanks to perfect covering


  • Full control thanks to central monitoring, measuring and control systems at one point
  • Individual layout, exact for your needs
  • Shortest makeready times for repeat jobs thanks to storage of complete job profiles including preset data

  • Register control (BST):
    • Manual mode for sampling, fine adjustment
    • Automatic mode with median value
  • Image control (ISRA):
    • Actual comparison with reference image
    • Actual comparison with PDF
    • If necessary, different sensitivity levels on one form
    • Relative color deviation to reference


Technical Data of the Chroma X Pro

Chroma X Pro 2100Chroma X Pro 2800

Min. Sheet Width

600 mm (23.62 in)

600 mm (23.62 in)

Max. Sheet Width

2,100 mm (82.67 in)

2,800 mm (110.24 in)

Min. Sheet Length

600 mm (23.62 in)

600 mm (23.62 in)

Max. Sheet Length1)

1,250 mm (49.2 in)

1,530 mm (60.24 in)

Max. Production Speed2)

14,000 sheets/h

12,000 sheets/h

Substrate Thickness

1 - 9 mm (0.039 - 0.354 in)

1 - 9 mm (0.039 - 0.354 in)

Nominal Circumference

1,300 mm (51.18 in)

1,676 mm (66 in)

Board Level Above Floor

2,250 mm (88.58 in)

2,250 mm (88.58 in)

Feeder Without Feed Rolls

Quick Setup While the Machine is Running

Automatic Register Control System (Longitudinal and Lateral Correction)

Fully Automatic Register Control System (Including Skew Correction)

100% Inline Print Inspection System

Motorised Skew Correction System on the Plate

Anilox Roll Changing System

Fully automatic (3+1) – in parallel

Fully automatic (3+1) – in parallel

Fully Automatic Job Change

1) without skipfeed

2) dependent on individual processing parameters, e.g. inks and substrates used

High-Quality Flexo Postprint on Corrugated Board

A unique overall concept that combines the latest technologies and functions with straightforward and intuitive operation – that is what distinguishes our presses for flexo post-printing on corrugated board.

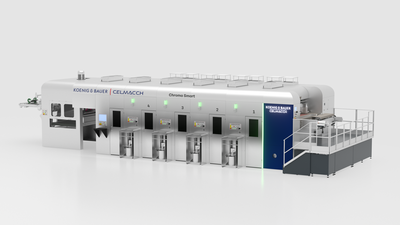

Chroma Smart

Within our range of high definition flexo presses, Chroma Smart represents a perfect combination of innovation and functionality.

Find out more

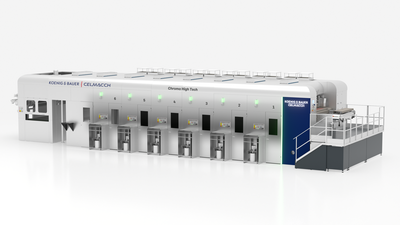

Chroma High Tech
