ChromaCUT X Pro

Flexo Post-Printing Press & Rotary Die-Cutter for Corrugated Board

Setup while production is running
DriveTronic shaftless drives
Fast job change, low maintenance
Press control via a flexible profibus system and touchscreen
Integrated error diagnostic and online remote maintenance

Ready to Meet the Demands of Tomorrow

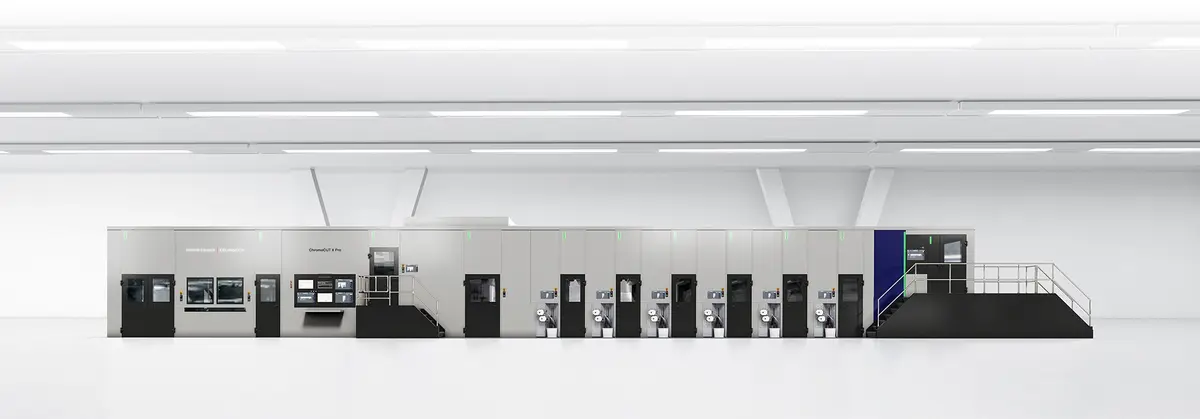

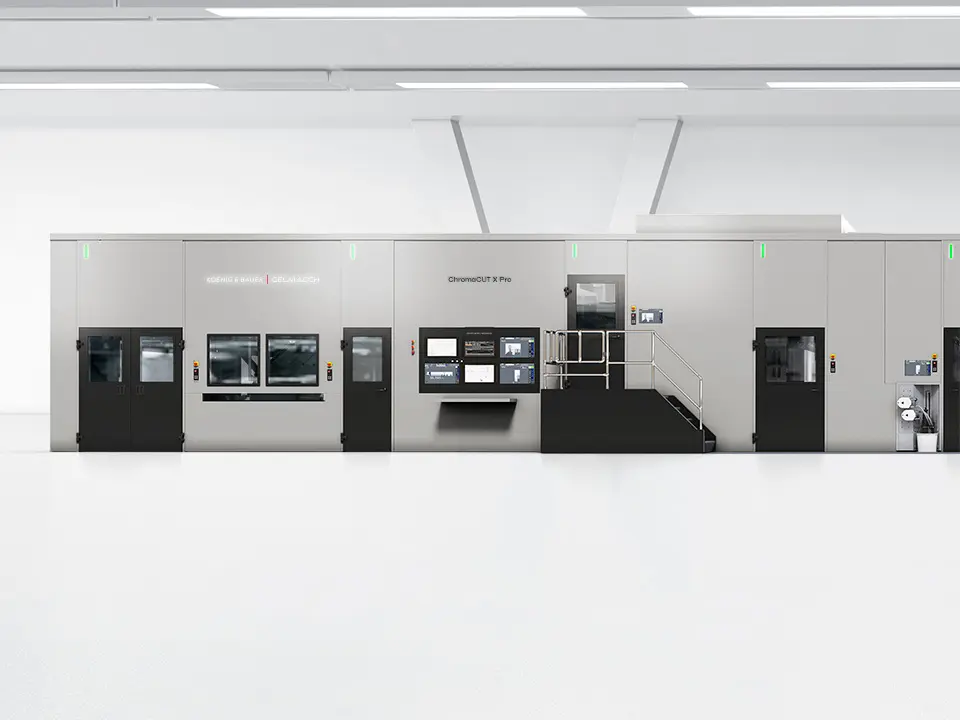

The name ChromaCUT X Pro stands for a unique machine concept based on cutting-edge technologies and maximum automation in combination with simple and intuitive handling.

The ChromaCUT X Pro has been designed for the high-performance rotary production of die-cut corrugated products in ultimate flexo post-printing quality.

The ChromaCUT X Pro handles corrugated sheets with a width of up to 2,800 mm (110.24 in) and a thickness of 9 mm (0.354 in), running at speeds up to 12,000 sheets/h.

Load and setup of following production while production
Comparison of two jobs for fastest changeover and suggestion
Automatic job change after finishing current job
Everything is preparable. Changeover in 3.5 minutes!
Manual intervention is reduced to a minimum

Load and setup of following job while production
Comparison of two jobs, if a Flying Job Change is possible
Flying job change is possible in case of equal die-cut tools, same board specifications and preparation of printing units during production
Fully automatic job change without manual interventions
Interruption of the infeed for only 2 boards
No speed reduction

2 die-cut cylinders with Serrapid fast clamping system
Fast changing time: 3:30 min
Special torque gears for highest accuracy
Each out row is individually adjustable in circumferential direction - for up to 4 rows of outs

Shortest changeover time under 2 minutes
Fully automated - no operator intervention
4 storage positions for maximum flexibility
Optimal protection thanks to perfect covering

Recognizing the print position with printed register marks
Positioning the board in lateral, circumferential and skewing position
No reduction of speed necessary
Die-cutting and printing perfectly matched in Post- AND Preprint

Automatic detection of the die-cut contour
Comparison to the best case sample
Level of accuracy can be set individually
Zero defect production
Documented as a report
Defective sheets can be ejected
Automatic machine stop in case of serial defects

Technical Data of the ChromaCUT X Pro

	Standard
Min. Sheet Width	600 mm (23.62 in)
Max. Sheet Width	2,800 mm (110.24 in)
Min. Sheet Length	600 mm (23.62 in)
Max. Sheet Length¹⁾	1,530 mm (60.24 in)
Nominal Circumference	1,676 mm (66 in)
Board Level Above Floor	2,250 mm (88.58 in)
Substrate Thickness	1 - 9 mm (0.039 - 0.354 in)
Max. Production Speed²⁾	12,000 sheets/h
¹⁾without skipfeed ²⁾dependent on individual processing parameters, e.g. inks and substrates used

Flexo Printing & Rotary Die-Cutting

Our ChromaCUT machine family offers you solutions for printing and die-cutting practically any corrugated board product. A comprehensive portfolio of high board line machines in all price and performance classes caters to every production and productivity requirement.

ChromaCUT High Tech

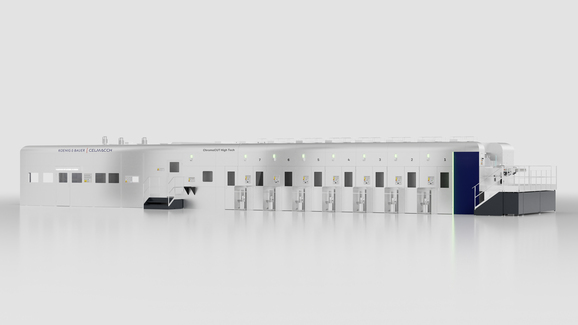

High productivity and exceptional print quality. ChromaCUT High Tech is available in the formats 2100, 2400 and 2800. The machine combines the advanced and well-proven printing technology of the ChromaPRINT with the highest precision of the rotary die-cutter.

Find out more

Chroma 2S

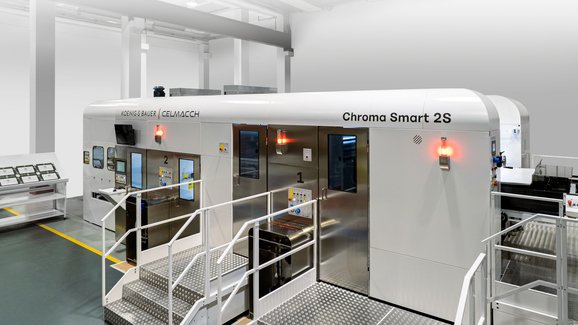

The two-sides printing in one single working process allows not only a significant increase of efficiency, but also a considerable reduction of production costs. Chroma 2S is available for all models of Chroma High Tech series and Chroma Smart series.

Find out more
