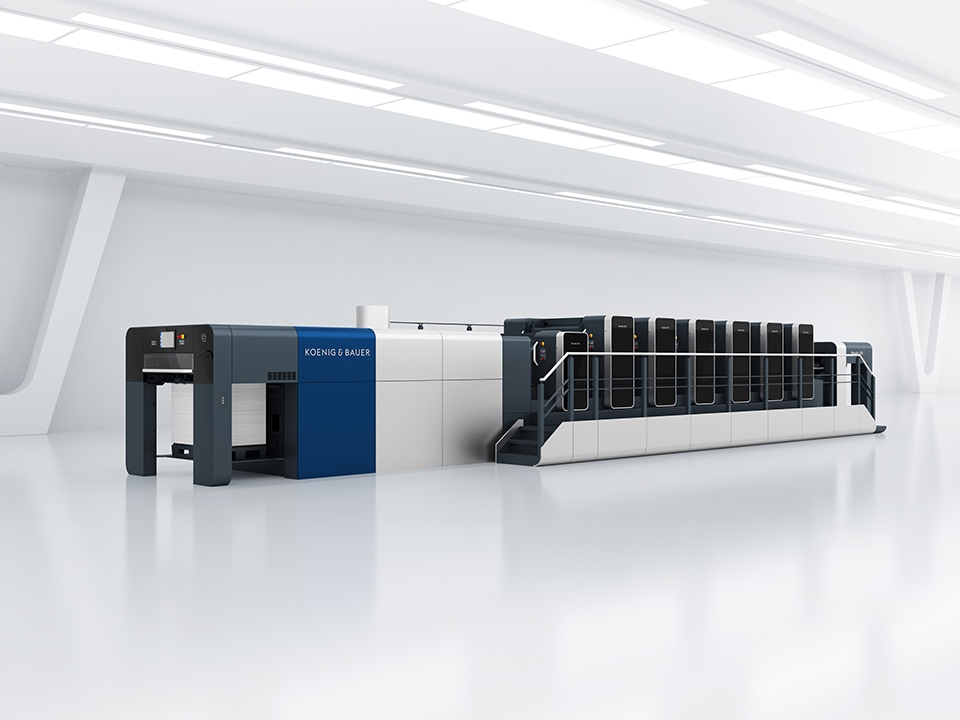

Rapida 105
Medium Format Sheetfed Offset Printing Press
The Rapida 105 has been impressing customers for years with high reliability in medium-format sheetfed offset and its attractive price-performance ratio.
Rapida 105
Medium Format Sheetfed Offset Printing Press
- State-of-the-art printing technology made in Germany
- Wide range of automation features to reduce make-ready times and increase production
- Market-leading measuring and control systems for register and density control as well as sheet inspection
- Latest generation operating concept and a wide range of preset functions
- Non-stop pile changing solutions for uninterrupted production
More Flexible Than Ever Before
For many years already, the name Rapida 105 has stood for absolute reliability and an attractive price-performance ratio in medium-format sheetfed offset. The market success of the press is founded on its high substrate flexibility, practice-oriented ease of handling and a robust design. Together, these factors contribute to excellent print quality on the most varied materials.
Being based on a common platform, the Rapida 105 shares numerous design solutions with its sister presses for the B1 format. That means cutting-edge technology which is lacking in many other sheetfed offset presses: Inking units which can be disengaged when not in use, user-oriented washing systems or ultramodern console features — many details make work easier for the printer.
- DriveTronic dedicated drive technology for absolute precision and high production speeds
- Four servo motors to control all feeder functions

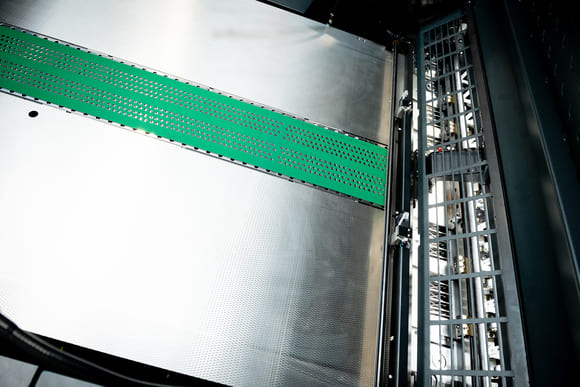

- Suction belt table with a central suction belt
- Double-size impression cylinders and transfer drums for stress-free sheet travel and ultimate substrate flexibility
- Hardened gripper tips and finely structured gripper pads for maximum holding forces and precise sheet transfer
- Easily accessible venturi sheet guide plates for marking- and scratch-free production

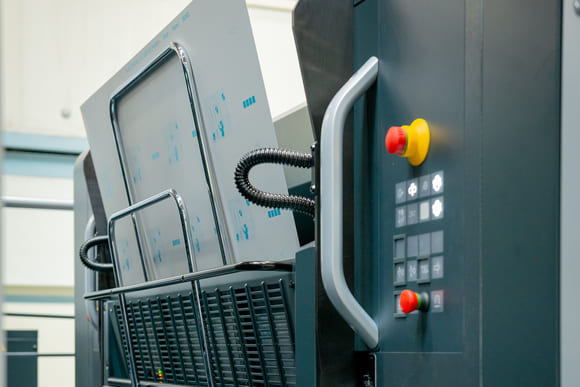

- Semi automatic plate change (SAPC): automatic press rotation to the change position
- Fully automatic plate change (FAPC)
- Use of unbent printing plates with FAPC
- Parallel washing processes and job-specific, preselectable washing programmes for excellent cleaning results
- CleanTronic roller washing system
- CleanTronic Synchro: simultaneous washing of blankets and impression cylinders during plate change with SPC

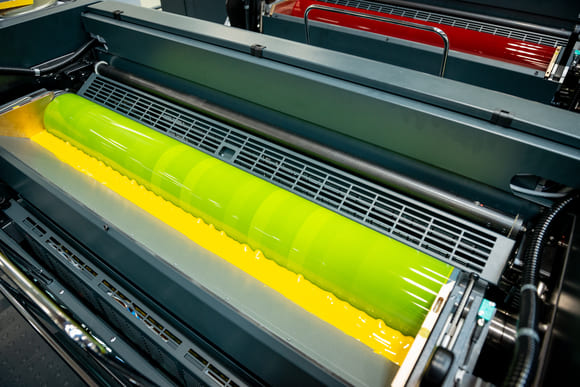

- Individual inking units can be engaged or disengaged as required for the job in hand
- No need to apply roller paste and no washing down to resume production
- Specially coated ink ducts for rapid ink changes

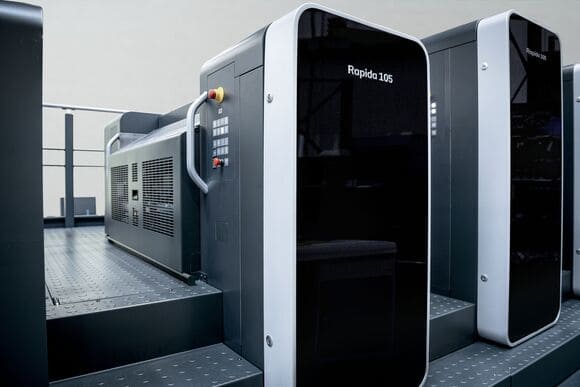

- State-of-the-art chamber blade technology with lightweight anilox rollers
- Coating supply system for dispersion and UV coatings in separate circuits
- Register setting from the press console
- Extremely fast colour control system reduces waste to an absolute minimum

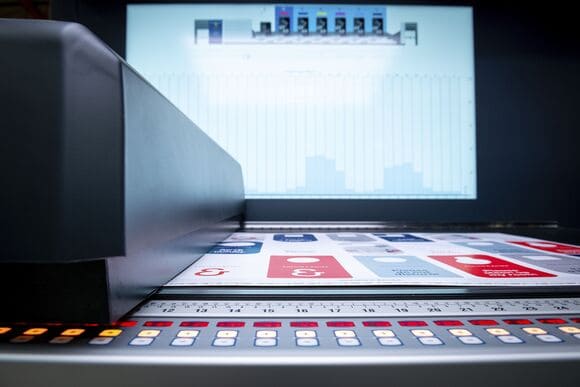

- Inline colour measurement of every single sheet and control of every 10th sheet for consistently high print quality
- Content monitoring with QualiTronic PrintCheck (comparison against master)
- Venturi sheet guide plates for contact-free sheet guiding
- Sheet brake with pre-suction elements for optimal sheet deceleration
- Extended delivery to increase productivity when coating
- State-of-the-art operating concept for intelligent, straightforward handling (incl. touchscreen)
- Job changeover programme for automated makeready processes
- Saving job profiles for repeat jobs
Technical Data of the Rapida 105
| Standard | Optional | |
|---|---|---|
Max. Sheet Format | 720 x 1,050 mm | 740 x 1,050 mm |
Max. Production Speed1) | 16,000 sheets/h | - |
Max. Production Speed1) Perfecting | - | 14,000 sheets/h |
Substrate Thickness2) | 0.06 - 0.7 mm | 1.2 mm |
Printing Units | 2 - 8 | - |
DriveTronic Feeder | ✓ | |
Fully Automatic Plate Change FAPC | - | ✓ |
Perfecting | - | ✓ |
Coater | - | ✓ |
CleanTronic Washing Systems | - | ✓ |
VariDry Dryer Systems | - | ✓ |
AirTronic Delivery | ✓ | |
Non-stop Solutions | - | ✓ |
ErgoTronic Console with TouchTronic Interface | ✓ | |
Quality Measurement and Control Systems | - | ✓ |
Remote Maintenance Module PressSupport 24 Sheetfed | ✓ | |
Workflow Solutions for Printshop Networking | - | ✓ |
1) Dependent on individual processing parameters, e.g. inks and substrates used 2) The flexural rigidity of the substrate is a decisive factor in suitability for printing | ||
