Rapida 76
Half Format Sheetfed Offset Printing Press
The Rapida 76 sets new standards in B2 sheetfed offset and offers unique Koenig & Bauer features and automation functions seen in medium format machines.
Rapida 76
Half Format Sheetfed Offset Printing Press
- Simultaneous Plate Changing system (SPC) changes all plates in under 1 minute
- Simultaneous washing processes using CleanTronic technology, drastically reduces job to job transition time
- Unique Sensoric Infeed System (DriveTronic SIS) offers maximum sheet accuracy, consistent feeder operation and maximum printing uptime
- Full preset capabilities throughout the press, ensuring precise and minimal job transition times
- QualiTronic colour control and PDF check options quickly control content, attain good colour and maintain tight colour tolerance on the run, minimises waste and maximises good sellable sheets on the floor
- High flexible and customisable configurations of up to 10 units plus coater
Full Automation in Half Format Sheetfed Offset
Our Rapida 76 sets new standards in B2 sheetfed offset. The unique Koenig & Bauer features and automation functions seen in medium format machines are now available for our half format customers. Full preset capabilities, a sidelay-free infeed and even more flexible configurations means the format class can cater for all segments and levels of job complexity.
The Rapida 76 is a highly efficient press for a diversity of applications.
In packaging printing, configurations of up to ten printing units, numerous coating options, raised foundations for higher piles, an especially wide substrate range, and production speeds up to 18,000 sheets/h. For commercial printers we focus our technology on transitioning from job to job as quickly as possible, reducing waste by minimising run up sheets to good colour, then maintaining that tight tolerance throughout the run.

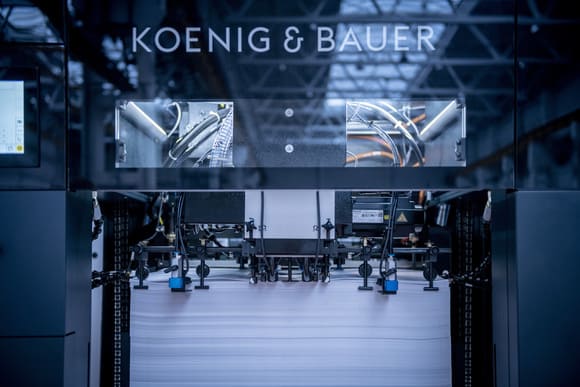

- DriveTronic dedicated drive technology for absolute precision and high production speeds
- Four servo motors to control all feeder functions
- Full preset capability of all air and format settings ensures the fastest possible makeready
- Patented sheet infeed system
- Electronically controlled lateral sheet alignment
- Eliminates maintenance and wear

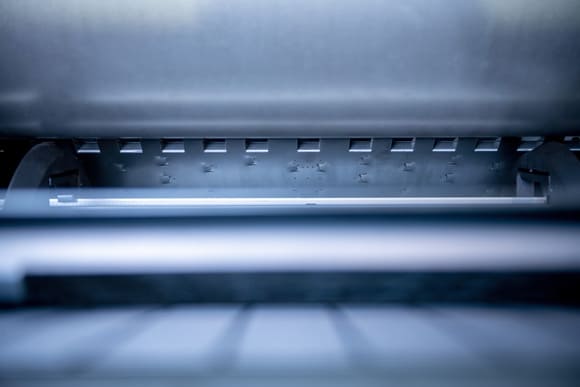

- Double-size impression cylinders and transfer drums for stress-free sheet travel and ultimate substrate flexibility
- Hardened gripper tips and finely structured gripper pads for maximum holding forces and precise sheet transfer
- Easily accessible venturi sheet guide plates for marking- and scratch-free production

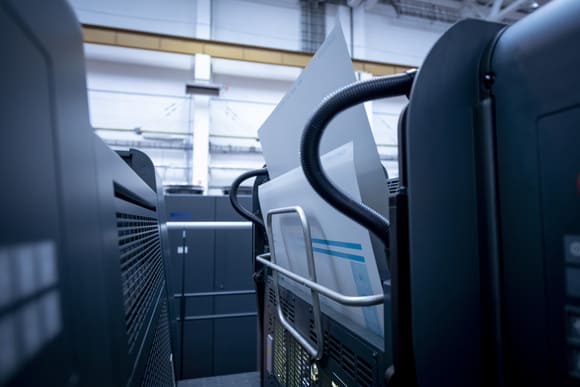

- Fully automatic simultaneous plate change in all printing units
- Fastest B2 plate change in the world at 45 seconds

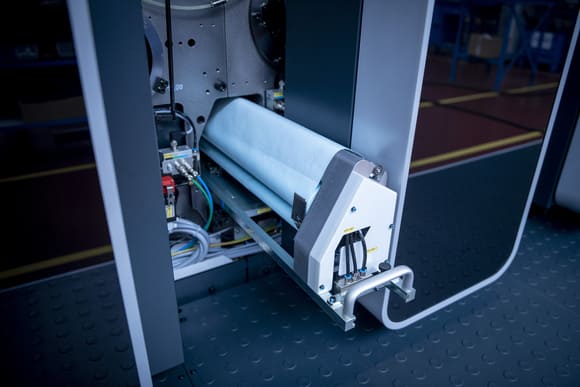

- Parallel washing processes and job-specific, preselectable washing programmes for excellent cleaning results
- CleanTronic Synchro: simultaneous washing of blankets and impression cylinders during plate change with SPC
- “PrintClean“ function: removes excess ink from plates and blankets to reduce blanket washing
- Individual inking units can be engaged or disengaged as required for the job in hand
- No need to apply roller paste and no washing down to resume production

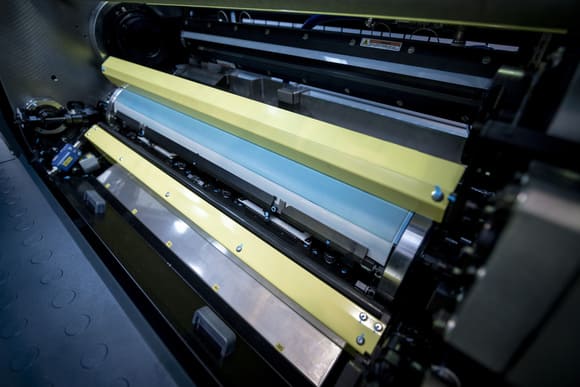

- Tool-free automated coating forme change (SAPC) in 45 seconds
- Automatic coating supply and cleaning system for simple and clean handling

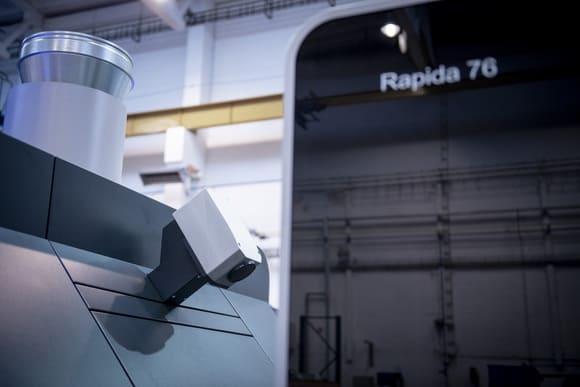

- Extremely fast colour control system reduces waste to an absolute minimum
- Inline colour measurement of every single sheet and control of every 10th sheet for consistently high print quality
- Content monitoring options available:
- QualiTronic PrintCheck for comparison against master
- QualiTronic PDFCheck for comparison against PDF

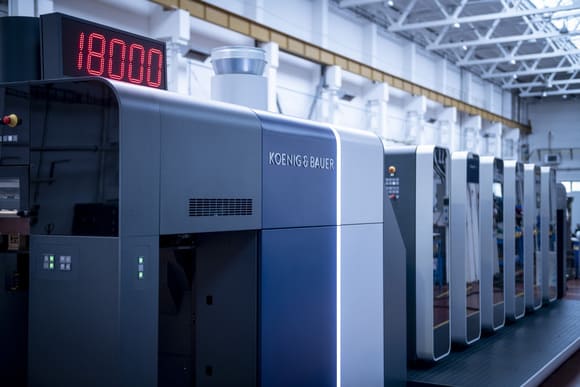

- Venturi sheet guide plates for contact-free sheet guiding
- Dynamic sheet brake comprising 3 suction modules with pre-suction wheels and speed-compensated suction belts
- Full preset capability of all air and format settings ensures the fastest possible makeready

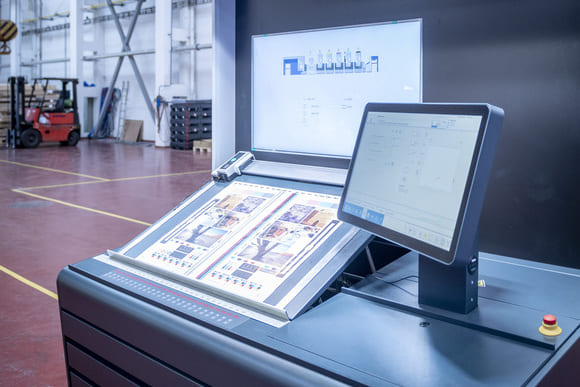

- Clear and intuitive operation via a 23-inch full HD touchscreen
- Fast and convenient selection of all operating functions with a maximum of two taps on the touchscreen

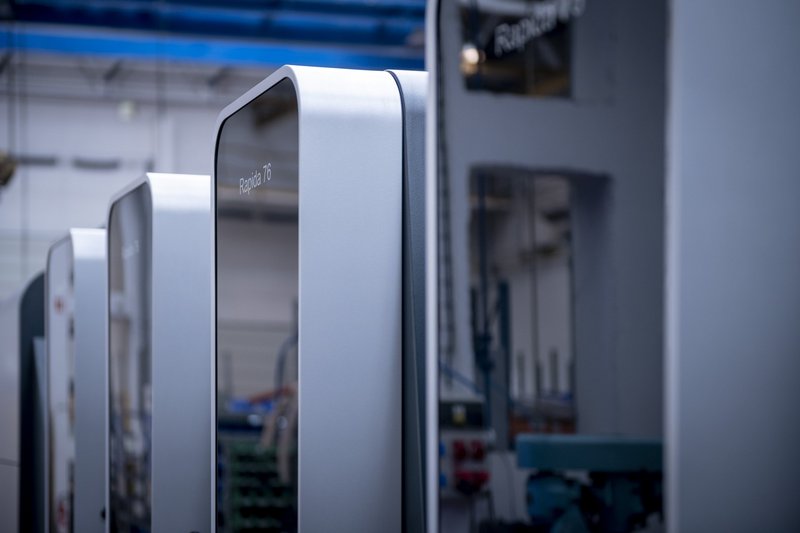

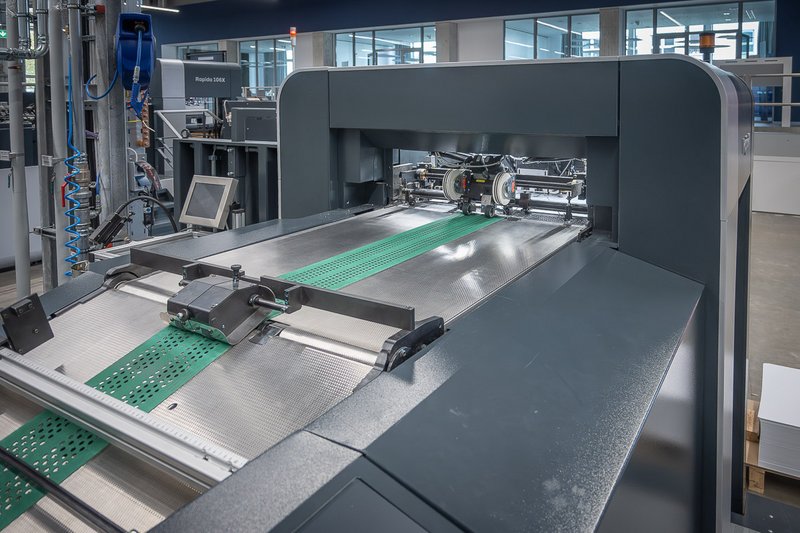

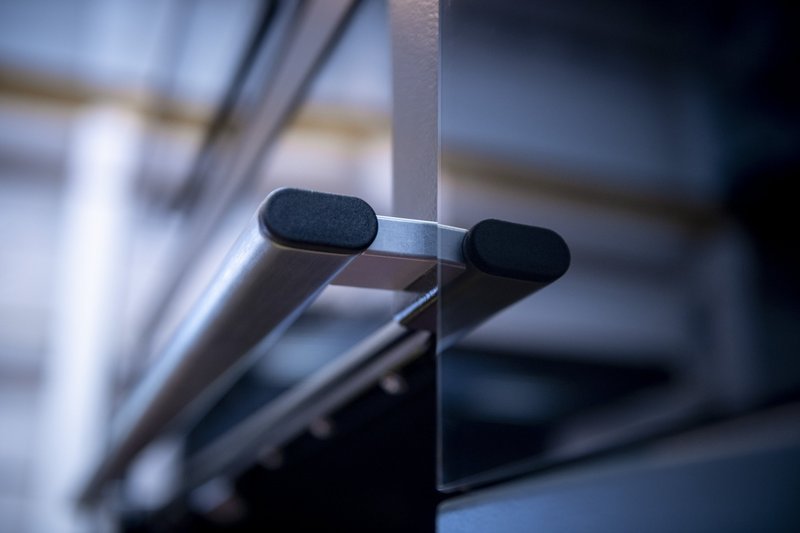

Print Production with the Rapida 76 - Impressions
Technical Data of the Rapida 76
| Standard | Optional | |
|---|---|---|
Max. Sheet Format | 530 x 750 mm | 605 x 750 mm |
Max. Production Speed1) | 16,000 sheets/h | 18,000 sheets/h2) |
Substrate Thickness3) | 0.04 - 0.6 mm | 1.0 mm |
Printing Units | 2 - 10 | + Coater/Cold Foil |
Sidelay-Free Infeed DriveTronic SIS | ✓ | |
Fully Automatic Plate Change FAPC | - | ✓ |
Simultaneous Plate Change SPC | - | ✓ |
Automated Coating Forme Change SAFC | ✓ | |
CleanTronic Washing Systems | - | ✓ |
VariDry Dryer Systems | - | ✓ |
AirTronic Delivery with Dynamic Sheet Brake | - | ✓ |
Pile Logistics | - | ✓ |
ErgoTronic Console with TouchTronic Interface | ✓ | |
Quality Measurement and Control Systems | - | ✓ |
Remote Maintenance Module PressSupport 24 Sheetfed | ✓ | |
Workflow Solutions for Printshop Networking | - | ✓ |
1) Dependent on individual processing parameters, e.g. inks and substrates used 2) With High Speed package 3) The flexural rigidity of the substrate is a decisive factor in suitability for printing | ||
